The Arduino VIN pin is the raw positive external voltage input header that feeds directly into the board’s onboard linear voltage regulator circuit. It accepts unregulated DC power between 7V and 12V, powers embedded ATmega microcontrollers when disconnected from USB, and must never receive unregulated voltages exceeding 20V to prevent thermal regulator burnout.
The Arduino development platform stands as the gold standard for embedded electronics prototyping, robotics, and industrial IoT monitoring. While developers frequently power development boards via a standard 5V USB computer interface during coding and debugging, standalone deployment requires external electrical power. The arduino vin pin is the primary hardware conduit for delivering unregulated direct current (DC) electricity to your microcontroller circuitry.

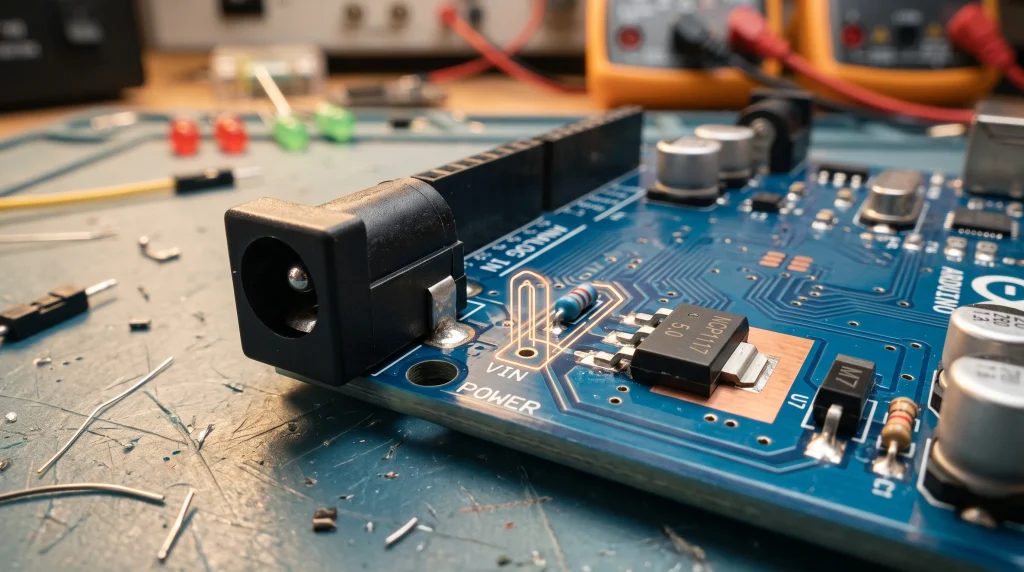

Electrical Topology of the Arduino VIN Architecture
To understand the operational capabilities and limitations of the VIN header pin, one must examine the electrical schematic connecting the DC barrel jack, the VIN pin, and the onboard power distribution rails:
- Direct Connection to the DC Barrel Jack: On standard Arduino Uno (R3/R4) and Mega 2560 boards, the center-positive 2.1mm DC barrel connector connects to the VIN pin through a protective series polarity diode (typically a 1N4007 or M7 Schottky diode).
- The Reverse Polarity Protection Diode: This diode protects the board against catastrophic damage if a user inadvertently plugs in a center-negative wall power adapter. However, the diode imposes a forward voltage drop of approximately 0.7V.
- Direct Access via the VIN Header: Feeding power directly into the VIN pin header on the female power header bypasses this series diode. This means applying reverse polarity (swapping positive and negative wires) directly to VIN and GND will destroy the onboard voltage regulator and the microcontroller IC instantly.
Voltage Input Boundaries: Absolute Maximums vs. Recommended Ranges
Navigating the electrical operating thresholds of the Arduino VIN pin requires distinguishing between the manufacturer’s operational recommendation and the absolute electrical failure limits:
| Voltage Specification | Voltage Range | Operational Status | Thermal & Stability Impact |
|---|---|---|---|
| Under-Voltage Threshold | < 6.5V DC | Unstable / Brownout | The low-dropout (LDO) regulator cannot maintain a clean 5.0V output rail. The MCU may reset unexpectedly or fail to clock accurately. |
| Recommended Input Range | 7.0V to 12.0V DC | Optimal Operation | Provides sufficient headroom above the regulator’s dropout voltage while minimizing excessive thermal power dissipation. |
| Acceptable Operating Limit | 6.0V to 20.0V DC | Conditional (Low Current Only) | At voltages above 12V, the onboard linear regulator dissipates immense heat. Any substantial current draw (> 150mA) will trigger thermal shutdown. |
| Absolute Maximum Rating | > 20.0V DC | Destructive Failure | Exceeds the maximum dielectric breakdown voltage of the onboard regulator (e.g., NCP1117 or LM1117), resulting in permanent semiconductor destruction. |
The Mathematics of Linear Voltage Regulation Thermal Dissipation
Unlike efficient buck switching regulators (switch-mode power supplies — SMPS) that modulate pulse-width to step down voltage with minimal energy loss, the standard Arduino linear regulator acts as a variable resistor, dropping excess voltage directly as thermal energy.
Thermal power dissipation in watts is calculated using the fundamental formula:
Ploss = (VIN – VOUT) × Iload
Consider an Arduino Uno powered by a 12V automotive battery drawing a total load current of 400mA (0.4A) across the MCU, display screen, and sensor modules:
- Voltage Drop:
12V - 5V = 7V - Thermal Dissipation:
7V × 0.4A = 2.8 Watts - Because the surface-mount SOT-223 regulator package lacks a substantial heatsink, dissipating 2.8 Watts will cause the component temperature to exceed 150°C within minutes, engaging internal thermal overload shutdown and resetting the board continuously.
Powering External Peripherals: Best Circuit Design Practices
To ensure bulletproof reliability in robotics, automation, and outdoor sensor nodes, implement these proven hardware design patterns:
- Never Power High-Current Actuators from the 5V Pin: Electric motors, solenoids, servo actuators, and mechanical relay coils generate substantial inductive flyback spikes and draw heavy current surges. Power these devices directly from a dedicated external power rail sharing a common ground (GND) with the Arduino, rather than pulling current through the onboard regulator.
- Use a Step-Down Buck Converter for Higher Voltages: If your project operates from a 24V industrial supply or 12V automotive lead-acid battery, install an external high-efficiency buck converter (such as an LM2596 or MP1584 module) to step the voltage down to a clean 7.5V before feeding it into the VIN pin.
- Implement an External Flyback Diode: When connecting external batteries to the VIN header, solder an inline Schottky diode (such as a 1N5819) in series with the positive wire. This reinstates polarity protection and prevents catastrophic destruction if power leads are accidentally reversed.
Frequently Asked Questions
Can I power an Arduino Uno simultaneously via USB and the VIN pin?
Yes. The Arduino Uno contains an automatic power-selection circuit featuring an onboard comparator (LM358) and a P-channel MOSFET. When the voltage on the VIN pin exceeds approximately 6.6V, the comparator turns off the MOSFET, cleanly disconnecting the 5V USB power rail and drawing power exclusively from VIN.
Can the VIN pin be used as a voltage output?
Yes. If you power the Arduino via the 2.1mm DC barrel connector, the VIN pin becomes a voltage output providing the barrel jack’s input voltage minus the 0.7V forward diode drop. However, if the board is powered solely via USB, the VIN pin will only output approximately 4.2V to 4.5V through the comparator circuit and cannot supply significant current.
